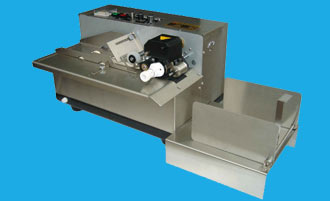

Batch Coder
Batch coder is a high utility product which functions in
many applications such as to code mandatory/obligatory variable information
like Best Before, Batch No., Mfg. Date, Exp. Date, M.R.P. Incl. Of All Taxes
or any other details simultaneously in one stroke. We offer this product at
a competitive price range for our esteemed customers.
| Model |
IPC 600 |
| Voltage (V/Hz) |
220/50 |
| Power (W) |
180 |
| Ink roller size
(mm) |
35x 32 35 x16 |
| Printing Speed (pcs
/ min) |
300 |
| Object size (mm) |
L : 50-500 W:
30~190 |
| Type number |
T Type (10.5PT): 11
Lines (Max.10 Types / Line) |
| |
R Type (10.5PT) : 8
Lines (Max.8 Types/Line) |
| Printing size(mm) |
Within 60-250 |
| Type size (mm) |
2x1.5 (8PT),
2.5x2(9PT), 3x3 (10.5PT), 4x2.5 (18PT) |
| Dimensions (LxWxH)
(mm) |
440 x 345 x 300 |
| Net Weight (kg) |
23 |
|
|
|
|
 |

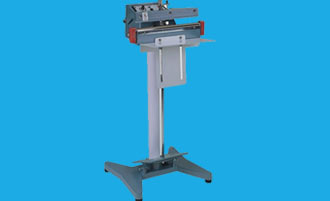

Foot Sealer
We offer superior quality foot sealer. These provide
economical and durable sealing / packing solutions. We have designed it to
facilitate the requirements of many industries. Our foot sealer is a
reliable product to seal the packed product in order to prevent or reduce
the risk of damage.
| Model |
IP 350 |
IP 450 |
IP 300 |
IP 400 |
| |
(Impulse Type) |
(Impulse Type) |
(Hot Bar Type) |
(Hot Bar Type) |
| Sealing Length (mm) |
350 |
450 |
300 |
400 |
| Sealing Width (mm) |
2~ 5 |
2 ~5 |
10 |
10 |
| Input Voltage
(V/Hz) |
220 / 50 |
220 / 50 |
220 / 50 |
220 / 50 |
| Heating Time (sec.) |
0~2.5 |
0~2.5 |
5 minutes |
5 minutes |
| Impulse Power (W) |
1200 |
1250 |
350 |
350 |
| Case Size (mm) |
450 x 510 x 880 |
550 x 520 x 880 |
345 x 485 x 880
|
445 x 485 x 880
|
| Weight (kg) |
19 |
21 |
14 |
16 |
|
|
|
|
 |

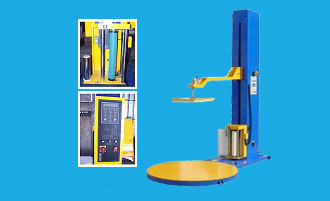

Stretch Wrapping Machine
We offer this product to our customers at an affordable
price. This stretch wrapping machine is fully automatic & can operate
continuously under severe industrial conditions. This kind of setup not only
allows it to work as a conventional stretch wrapper but also as a top bander
or semi-automatic stretch wrap machine if required.
| Model |
IP 2100 |
IP 2400 |
| Voltage (V/Hz) |
AC 220 / 50 or 440
/ 50 |
AC 220 / 50 or 440
/ 50 |
| Power (W) |
1300 |
1300 |
| Max Packing height
(mm) |
2100 |
2400 |
| Max Packing weight
(Kg) |
2000 |
2000 |
| Diameter of
turntable (mm) |
1600 |
1500 |
| Turn Table Motor
(HP) |
1 |
1 |
| Turn Table Speed
(RPM) |
5 ~ 15 (Adjustable) |
5-15 (Adjustable) |
| Electro Magnetic
Brake (HP) |
1.3 |
1.3 |
| Film Carriage Motor
(HP) |
½ |
½ |
| Pre Stretch Motor
(HP |
½ |
½ |
| Available film
|
LLDPE film with
outside |
LLDPE Film with
outside |
| |
Dia 280 mm, width
500 mm |
Dia. 280 mm, width
500 mm |
| Film Thickness
(microns) |
17~35 |
17~35 |
| Dimensions (LxWxH)
(mm) |
2800 x 1600 x 2400 |
2838 x 1636 x 803 |
| Weight (Kg) |
730 |
850 |
|
|
|
|
 |
