Carton Sealer
Carton sealer is ideal for carton packing used in
textile, food, medicines, merchandise, home appliances, chemicals and so on.
Our carton sealing machine adopts adhesive tape to seal carton, fast and
economical and easily adjustable. The carton sealer can finish two sides of
upper and down part ones a time. Mostly all these carton sealing machine
done using carton sealer machines like random carton sealer.
| Model |
IP- 6050
(Uniform) |
IP- 5050Q
(Pneumatic Operated Automatic) |
| Voltage (V/Hz) |
220 / 50 |
220 / 50 |
| Maximum Carton Size
(WxHxL) mm |
500 x 600 |
500 x 500 |
| Minimum Carton Size
(WxHxL) mm |
140 x 150 |
170 x 100 |
| Speed (m/min.) |
20 |
24 |
| Available Adhesive
Tape |
BOPP, water free
adhesive tape |
BOPP, water –
free adhesive tape |
| |
PVC Adhesive tape
|
PVC adhesive tape |
| Height of Table
(mm) |
635-780 |
600-780 |
| Width of Adhesive
Tape (mm) |
48 60 76 |
48 60 76 |
| Size (Lx W xH) |
1755 x 740 x (1445
1605) |
1970 x 660 x (1280
1460) |
| Weight (kg) |
120 |
150 |
|
|
|
|
 |

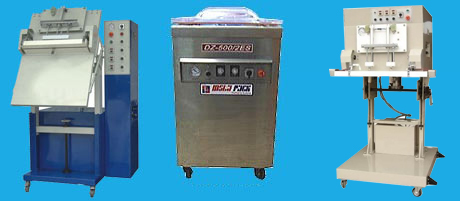

Vacuum Packing Machines
We offer superior quality vacuum packing machines. These
vacuum packing machines are highly durable, easy to operate and are ideal
for applications like packing of meat products, sea food, medicine,
electronic components, hardwares, beancurd products, medical appliances etc
| Model |
IPDZ 500 / 2ES |
IPDZQ 500/
2SB** |
IPDZQ 600 *** |
| Chamber |
Single or Double
(SS HUII) |
Double (SS HUII)
|
No Limit |
| Voltage (v / Hz) |
220 / 50 |
440 /50 |
220 / 440, 50 |
| Vacuum pump power
(W) |
1500 |
1500 |
1100 |
| Sealing Power (W) |
750 |
750 |
750 |
| Sealing Width (mm) |
10 |
10 |
10 |
| Lowest Pressure of
Vacuum Chamber (KPa) |
1 |
1 |
1 |
| Sealing Position of
Vacuum Chamber |
2 |
2 |
1 |
| Volume Chamber Bulk
(Lx Wx H ) (mm) |
530 x 525 x 100 |
580 x 550 x 110 |
No Limit |
| Sealing Length (mm) |
500 |
500 |
600/ 700 / 800 /
1000 |
| Air Charging Volume
for Vacuum Pimp (m3/h) |
20 |
40 |
20 |
| Material for Vacuum
Case |
Stainless Steel
|
Stainless Steel
|
Nil |
| Dimensions (LxWxH)
mm |
580 x 650 x 1010 |
1260 x 780 x 960 |
960 x 940 x 1800 |
| Weight (Kg) |
125 |
220 |
230 |
|
|
|
|
|
Continuous Band Sealer
Continuous Band Sealer IP 600 Series
We present highly advance continuous band sealers. Easy
to operate, these continuous band sealer can be used for virtually any
application where fast, secure packing sealing is required. The continuous
band sealer is superior in performance and efficiency.
| Model |
IP 601 H/V |
IP 601 CV (Air
Flushing) |
IP 602V |
IP 603 V |
| Voltage (V/Hz) |
220 / 50 |
220 / 50 |
220 / 50 |
220 / 50 |
| Power (W) |
650 |
835 |
230 |
370 |
| Heat Sealing Power
(w) |
|
40 x 2 |
300 x 4 |
300 x 4 |
| Sealing Speed
(m/min.) |
0 12 (0 16) |
0 12 (0 16) |
0 10 |
8 |
| Sealing Width (mm)
|
8 ~ 10 |
8 ~ 10 |
8 ~ 10 |
8 ~ 10 |
| Temperature range
(Deg.C) |
0 ~ 300 |
0 ~ 300 |
0 ~ 300 |
0 ~ 300 |
| Printing type |
Embossing
(Optional) |
Solid Ink Roller |
Nil |
Solid Ink Roller |
| Distance from the
sealing center |
|
|
|
|
| to the conveying
table (mm) |
10 ~ 40 |
10 ~ 40 |
Nil |
620 ~ 880 |
| Conveyor size (L x
W) mm |
840 x 153 |
930 x 180 |
1400 x 250 |
900 x 300 |
| Film Thickness (mm) |
0.08 |
0.08 |
0.12 to 0.18 |
0.12 to 0.18 |
| Single Conveyor
Loading (Kg) |
1 |
1 |
5 |
10 |
| Overall Conveyor
Loading (Kg) |
3 |
3 |
10 |
30 |
| Overall Dimension
(LxWxH) |
840 x 380 x320
|
1050 x 560 x 900
|
1450 x 680 x 1480 |
1950 x 550 x 1100 |
| Net Weight (Kg)
|
32 |
62 |
107 |
150 |
|
|
|
|
|
©
