Automatic Strapping Machine





Shrink Tunnel

Shrink Tunnel
This series of shrink tunnel machine offers superior performance, easy operation, latest features, compact size and metal enclosure. Robust in design, these shrink tunnel are applicable for a wide range of packing applications using wrapping machines like shrink wrapping machines, Automatic Shrink Wrapping Machine, Shrink Wrapping Machine,. We have designed this shrink tunnel machine with the objective of durability, clear visibility, tamper proof and total protection from environmental factors.



Model IP 3015 IP 3020 IP 4515 IP 4525 IP 4525L IP 435 L
Tunnel Size (W x H) mm 300 x 150 300 x 200 450 x 150* 450 x 250* 450 x 250* 450 x350*
Heater Tubular Type Tubular Type Fin Type Fin Type Fin Type Fin Type
Voltage (V/Hz) 220/50 220/50 220/440/50 220/440/50 440/50 440/50
Power Consumption (KW) 3.5 4.2 6.5 6.5 9.6 9.6
Conveyor Loading (Kg) 15 15 15 15 30 30
Heating Furnace (mm) 800 x 300 x 150 800 x 300 x 200 900 x 450 x 150* 900 x 450 x 250* 1200 x 450 x 250* 1200 x 450 x 350*
Overall Dimension (mm) 1150 x 560 x 1170 1150 x 560 x 1220 1200 x 610 x 1000 1200 x 610 x 1000 1600 x 610 x 1000 1600 x 610 x 1100
Speed (m/min.) 0 ~ 10 0 ~ 10 0 ~ 10 0 ~ 10 0 ~ 10 0 ~ 10
Heating Time (minutes) 5 5 10 10 10 10
Cooling Time (minutes) 15 15 15 15 15 15
Net Weight 70 80 90 90 120 120

Yes! I am interested

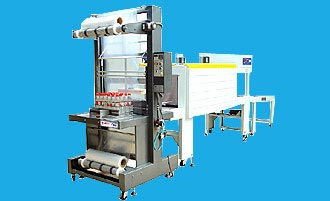

Shrink Tunnel with Web Sealer
The shrink tunnel machine with sealer IP 1045, 104535, 1055 and 1065 is designed for unique and special packing requirements of our clients. Produced using advanced sophisticated machines and infrastructure, these shrink tunnel machines are high in performance, utility, easy to operate and serve for long.We provide various types of shrink machine like Sleeve Wrapping Machines, Automatic Heat & Shrink Wrapping Machine.


Model IP 5530M-PE IP 5540M-PE IP5530L-PE IP5540L -PE
Tunnel Size (W x H) mm 550 x 300 550 x 400 550 x 300 550 x 400
Heater Fin Type Fin Type Fin Type Fin Type
Voltage (V/Hz) 440 /50 440 /50 440 /50 440 / 50
Power Consumption (KW) 15 18 24 24
Conveyor Loading (Kg) 40 40 80 80
Heating Furnace 1400x550x300 1400x550x400 2000x550x300 200x550x400
Overall Dimension 2470x710x1350 2470x710x1450 3200x710x1350 3200x710x1450
Speed (m/min.) 0 ~ 10 0 ~ 10 0 ~ 10 0 ~ 10
Heating Time (minutes) 10 10 10 10
Cooling Time (minutes) 15 15 15 15
Net Weight 260 280 320 350

Web Sealer

Model IPTF-6540
Voltage (V/Hz) AC 220/50 or 110 / 50
Motor Power (KW) 1.5
Packing speed (pcs/min) 12
Max packing dimension (LxWxH) (mm) 530 X330X380
Max Sealing length (mm) 650
Height of conveyor (mm) 800+50 (Adjustable)
Working air pressure (kgf/m²) 6-8
Dimension (LxWxH) (mm) 1550 x 1400x1920
Weight (kg) 400

Yes! I am interested

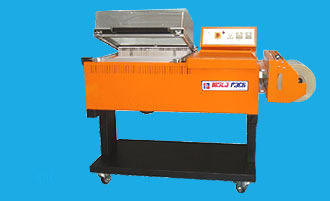

Shrink Chamber
IP – 2000 series of shrink chamber is high in performance, reliability and error free. Designed to satisfy individual specific needs and requirements, the machine is quality checked and is in compliance with industry standards and guidelines.These machines includes Semi Automatic Seal Cut & Shrink Machine, Fully Automatic Seal Cuts & Shrink Machine,



Model (LxW) IP-2025 IP-2035 IP-2055
Sealing Area 300x280mm 450x350mm 550 x400 mm
Model Product Height (H) 250 mm 250 mm 250 mm
Power Source 220v, 50v, 1Ph 220v, 50v, 1Ph 220v, 50v,1Ph
Max. Power Req. 1.25 kW 1.7kW 20 Kw

Yes! I am interested




POF Shrink Film

POF shrink film are Flat or center-folded rolls. They have the following properties :
  • High clarity
  • Fast & high shrinkage ratio
  • High environmental protection
  • Tear enduringly & pound resistively
They are used for packing both regular & irregular shape products such as boxes, cups, stationary, books, toys, pesticide, food, cosmetics, record & video tapes

Ask For Price
Yes! I am interested




Strapping Machines

Table Top Strapping Machines
We present our high quality table top strapping machines. These strapping machines offer economical and reliable strapping solutions. The automatic strapping machines is ruggedly designed to be used in varied packing areas and shipping locations. The strapping machine is mostly used to reinforce corrugated boxes for shipping or to bundle two or more boxes together for saving shipping or courier charges.Strapping machines also includes Fully Automatic With Multi-Lane Collator, Fully Automatic With Integral Horizontal Collator, Fully Automatic Tray Erecting & Gluing Machines.



Model Table op IP 501H Low Table Top IP 501L Side Sealing IP 501S Pallet Strapping IP 501 P
Max. Strap Size (mm) Not Stipulated Not Stipulated Not Stipulated Not Stipulated
Min. Strap size (mm) 60 x 30 60 x 30 60 x 30 60 x30
Strapping Speed (seconds) 1.5 1.5 1.5 1.5
Strap Width (mm) 6 15 6 15 6 15 6 15
Strap Force (Newton) 450 450 450 450
Working Table Height (mm) 750 500 Adjustable .... NA....
Power Source (V/ Hz) 220 / 50, ¼ HP 220 / 50, ¼ HP 220 / 50, ¼ HP 220 / 50, ¼ HP
External Dimension (mm) 900 x 580 x 750 900 x 580 x 500 880 x675 x 1650 900 x 580 x 500
Weight (kg) 105 100 120 120

Yes! I am interested

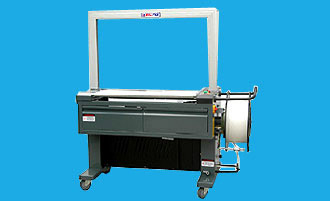

Fully Automatic Strapping Machines



Model Automatic IP 501 F
Max. Strap Size (mm) 800 x 600*
Min. Strap (mm) 80 x 50
Strapping Speed (seconds) 2
Strap Width (mm) 9 15
Strap Force (Newton) 25 -700
Working table Height (mm) 830
Power Source (V/Hz) 440 / 50, 0.1.2 HP
External Dimensions (mm) 1420 x 650 x 1565
Weight (kg) 235

Yes! I am interested

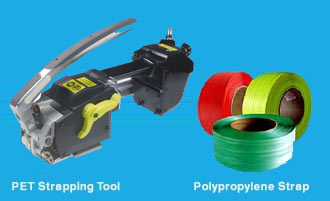

PET Strapping Tool

This pet strapping tool has qualities like compact structure, light weight, strong tension, tight buckle and convenient operation. This pet strapping tool combines the tension with the fastening buckle, it is different from the conventional tool and is available at a effective cost range with us.



Model IP 501 PST
Strap Polypropylene (PP) & Polyester (PET)
Strap dimensions 12.7-19.0 (w) x 0.40 x 1.35 mm (Thickness)
Strap tension 650-3000 N (Adjustable)
Sealing Type Seal Less
Power supply 14.4 VDC Battery
Weight 4.5 kg
